-原创内容,请勿转载。



  有些TI芯片的生产日期代码只有2-3位数字,没有明确的年份表示,导致很多朋友在购买芯片后,无法理解,所以今天我们找到这类芯片的大部分代码翻译方法,来帮助我们快速理解。



TI 芯片日期代码 - 数字

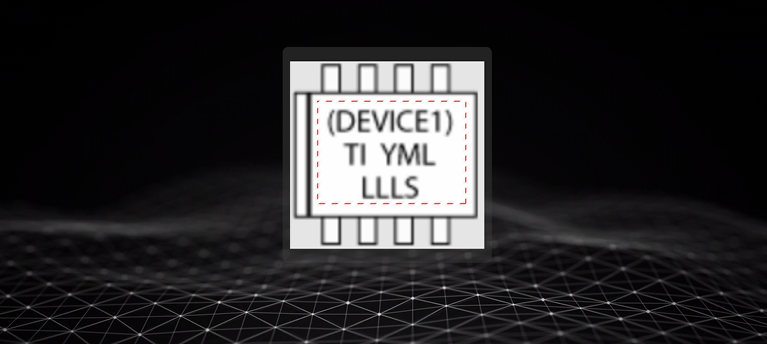

位置

• 如果我们想解释它的年份,我们必须首先知道要解释哪一行。此 YM 是丝网印刷第二行中生产日期的位置。


TI chips date code.png

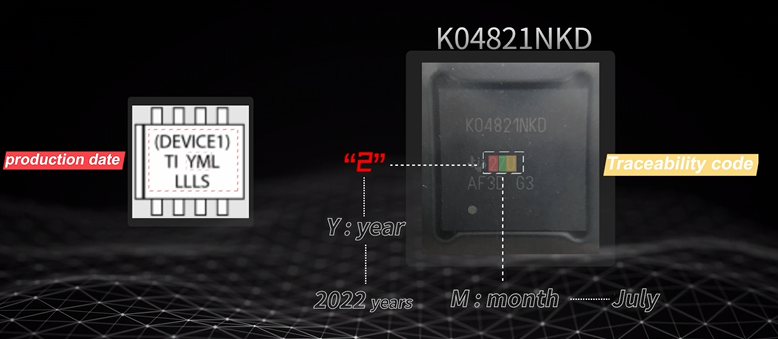

日期代码规则

• 集合年份的最后一位数字 (例如 0=2000, 1=2001)。拍一张实体照片来结合说明,这个数字是今年的最后一个数字。今年的 27U 中有 2 个是 2022 年,拿 2 个。

• 月份组合:(1=1 月,2 = 2 月,3 = 3 月,4 = 4 月,5 = 5 月,6 = 6 月,7 = 7 月,8 = 8 月,9 = 9 月,A=10 月,B = 11 月,C=12 月).2 M 月之后,7 对应于 7 月,易于理解。

• 第三个单词 U 是可追溯性代码。

• 阅读保险洞察后检查标签是否错误?标签批次 2227 是否对应。


TI chips date code.png

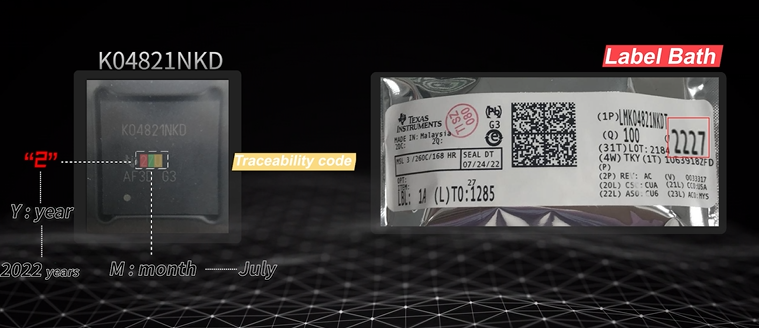

解释

• Patr:LMK04821NKDT

• 标签批次 22 年 27 周

• 芯片丝印 批号 27U:2 代表 22 年,7 代表 7 月 U代表 组装厂代号


TI chips date code.png



TI 芯片日期代码 - 二进制代码

有些元器件尺寸太小,除了丝印型号和批量信息外,小体积不够容纳,所以只能用二进制的方式来表示元器件的年份,我们先看图,看图就看不懂后面的实物了。顶行是 expression 的年份,而底行是 expression 的月份,不同的二进制数字代表不同的数据,它们的结果相加。接下来是控制表。

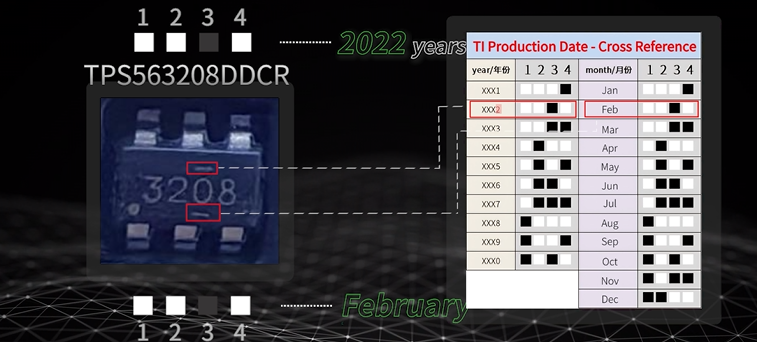

示例 1

以 TPS563208DDCR 模型为例,顶部的水平线落在第三位,而这个第三位的位置对应着 XXX2 年,以年份的最后一位结束,也就是 2022 年,该月也落在第三位,对应着这个表中的 2 月。你不明白吗?如果您无法理解,请继续阅读下一个例子。跟我来。


TI chips date code.png

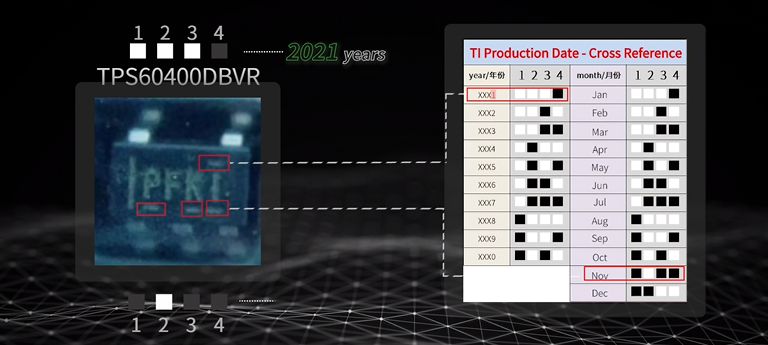

示例 2

再次采用TPS60400DBVR模型,年份排在第四位,即对应 xxx 1,在年份的最后一位即 2021 年,月份排在第一位和第三位和第四位,表格对应的月份是 11 月。


TI chips date code.png

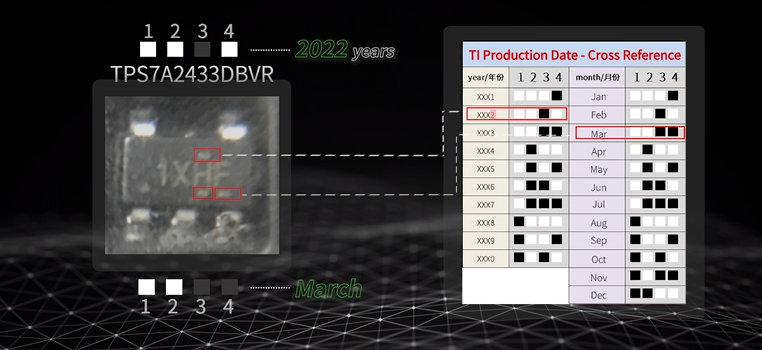

示例 3

然后拿每个模型看,年份在第三位,也就是对应的是 xxx 2,以年份的最后一位结束,也就是 2022 年,月份落在第三和第四,表格对应的月份是 3 月。

TI chips date code.png



Other types of binary code

• In addition to these, there are other binary codes, including D series 2113. (DC) 2117 also has 8 4 2 1 decoding method, this table is more convenient and practical.
