 采购代理在采购时经常会得到错误的封装或错误的零件,TI 的 74 系列组件。这是因为 Product Number 的命名规则不够详尽。下表可以解决您的许多问题。

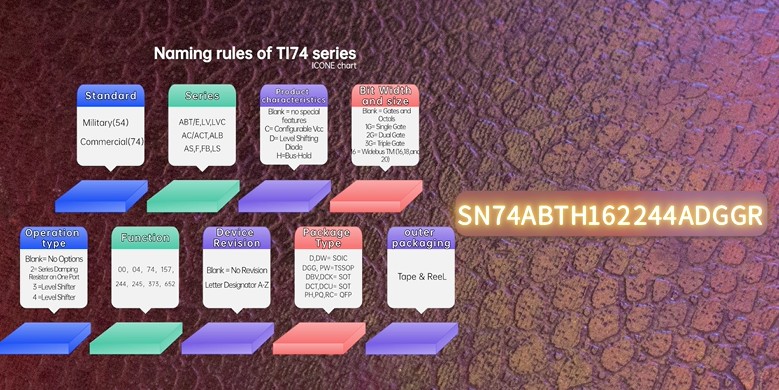

像往常一样,让我们先来看图片。第一行是标准行。54 是军用设备。74 是商用设备。第二列是 series。第三行是产品特性。如果没有标记,则表示该产品没有特殊特性。第四行是第五行是位宽和大小。第六行是函数。第七行是设备的修订版。它有 AZ。如果为空,则表示没有修订版。第八行是 package。最后一个是外包装。


SN74 ABTH 162 244 A DGG R

• 我们先来分析一下:SN74 是一款商用系列器件。ABT 属于 ABT 系列。H 总线具有 Bus-Hold 功能特性。大小为 2 的 16 位组件表示第二种类型的作端口 244。功能,则 A 设备的版本为 A。如果为空,则表示没有修订版。DGG 对应于 TSSOP 封装。R 表示卷带。


SN74 ABTH 162 244 A DGG R.jpg



SN74 低压 C 1G 3 157DCKR

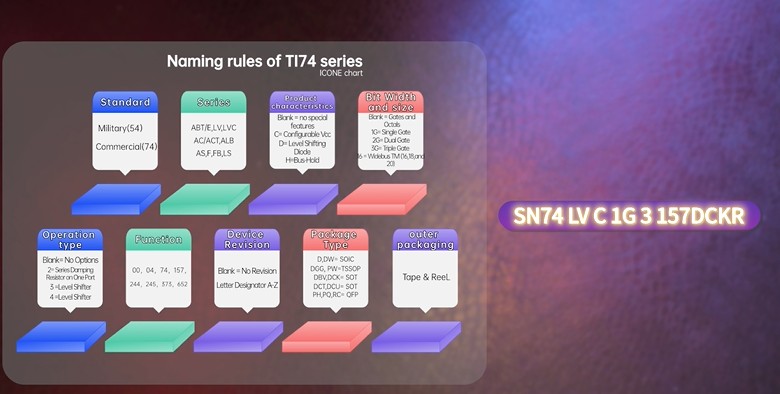

• 让我们使用另一个模型进行分析。SN74 是一款商用系列器件。LV 属于 C 系列,具有 C= 可配置 Vcc 的特殊功能。它是一个位宽为 1G 的元件,3 类 3作类型,157 是功能,DCK 对应我们的 SOT。包装,R 表示卷带。


SN74 LV C 1G 3 157DCKR.jpg



SN74   LVC   1G  08   D  CK   R

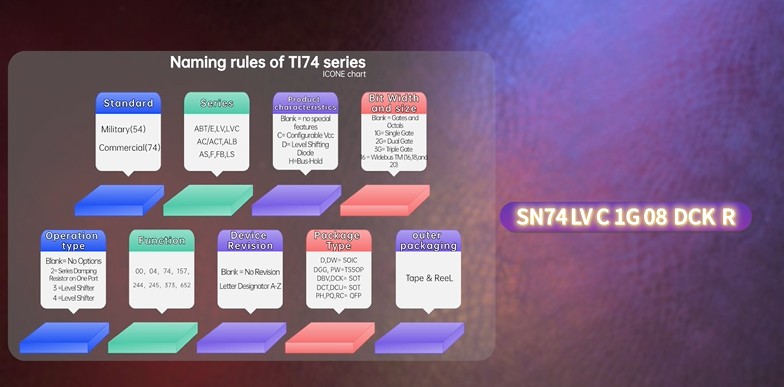

• 通过比较此表,您会发现某些地方可以留空。下面的示例有一个空白区域。这里应该有一个 operation port,但是我们的模型没有这个,它没有 blank。

SN74   LVC   1G  08   D  CK   R.jpg



SN74LVC2G08DCUR

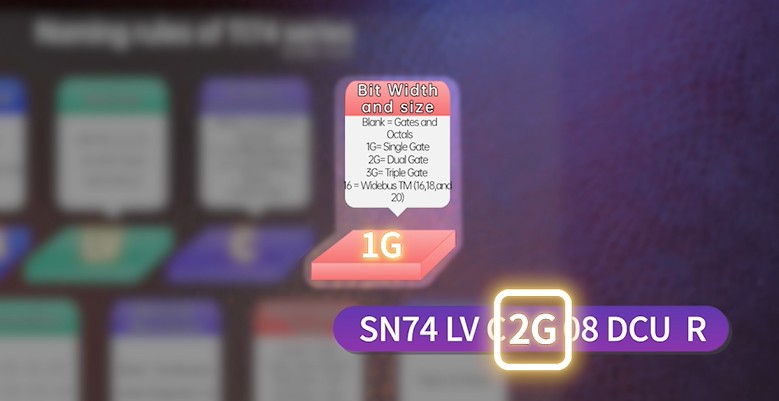

• 此型号与上述型号非常接近,只是一个是 2G 另一个是 1G。




Be familiar with the naming rules of the chips. In addition to avoiding taking the wrong goods, the key can quickly find alternative products when the stock is out.
