A Comprehensive Guide to 10CL006YE144I7G FPGA - Field Programmable Gate Array

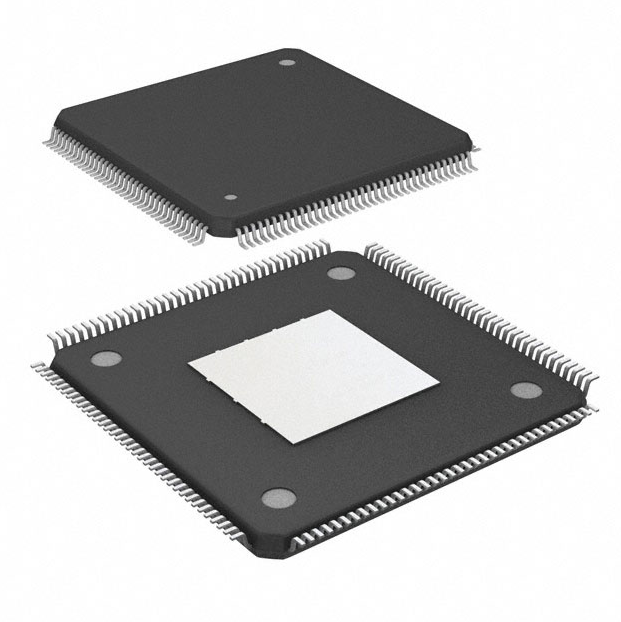

Cyclone® 10 LP Field Programmable Gate Array (FPGA) IC 88 276480 6272 144-LQFP Exposed Pad

Summary of Features for Intel Cyclone 10 LP Devices

Technology

• Low-cost, low-power FPGA fabric

• 1.0 V and 1.2 V core voltage options

• Available in commercial, industrial, and automotive temperature grades

Packaging

• Several package types and footprints:

— FineLine BGA (FBGA)

— Enhanced Thin Quad Flat Pack (EQFP)

— Ultra FineLine BGA (UBGA)

— Micro FineLine BGA (MBGA)

• Multiple device densities with pin migration capability

• RoHS6 compliance

Core architecture

• Logic elements (LEs)—four-input look-up table (LUT) and register

• Abundant routing/metal interconnect between all LEs

Internal memory blocks

• M9K—9-kilobits (Kb) of embedded SRAM memory blocks, cascadable

• Configurable as RAM (single-port, simple dual port, or true dual port), FIFO buffers, or ROM

Embedded multiplier blocks

• One 18 × 18 or two 9 × 9 multiplier modes, cascadable

• Complete suite of DSP IPs for algorithmic acceleration

Clock networks

• Global clocks that drive throughout entire device, feeding all device quadrants

• Up to 15 dedicated clock pins that can drive up to 20 global clocks

Phase-locked loops (PLLs)

• Up to four general purpose PLLs

• Provides robust clock management and synthesis

General-purpose I/Os (GPIOs)

• Multiple I/O standards support

• Programmable I/O features

• True LVDS and emulated LVDS transmitters and receivers

• On-chip termination (OCT)

SEU mitigation

SEU detection during configuration and operation

Configuration

• Active serial (AS), passive serial (PS), fast passive parallel (FPP)

• JTAG configuration scheme

• Configuration data decompression

• Remote system upgrade
