A Comprehensive Guide to 10CL010YU256C8G FPGA - Field Programmable Gate Array

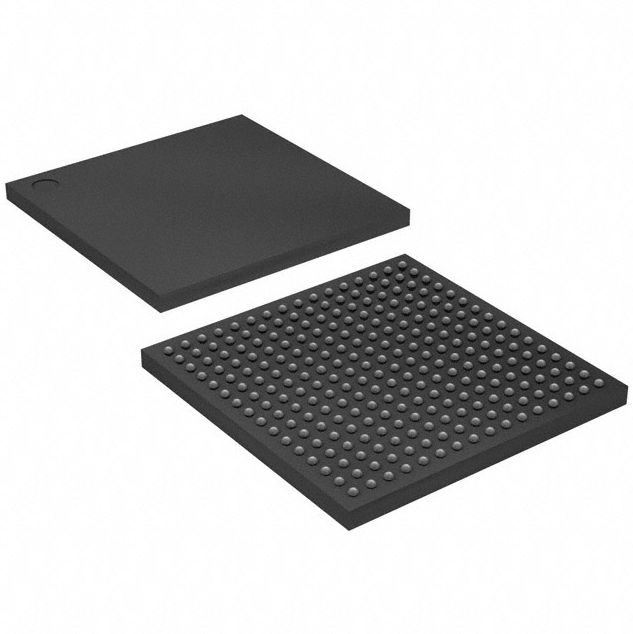

Cyclone® 10 LP Field Programmable Gate Array (FPGA) IC 176 423936 10320 256-LFBGA

Description

This document describes the electrical and switching characteristics for Intel® Cyclone® 10 LP devices as well as I/O timing,

including programmable I/O element (IOE) delay and programmable output buffer delay

Operating Conditions

When Intel Cyclone 10 LP devices are implemented in a system, they are rated according to a set of defined parameters.

To maintain the highest possible performance and reliability of Intel Cyclone 10 LP devices, you must consider the operating

requirements described in this document. Intel Cyclone 10 LP devices are offered in commercial, industrial, extended

industrial and, automotive grades as follows:

• –6 (fastest) and –8 speed grades for commercial devices

• –7 and –8 speed grades for industrial devices

• –7 speed grade for automotive devices

Intel Cyclone 10 LP devices are offered in the following core voltages:

• Lower core voltage option (1.0 V)—"Z": For –I8 speed grade

• Standard core voltage option (1.2 V)—"Y": For –C6, –C8, –I7, and –A7 speed grades

A prefix associated with the operating temperature range is attached to the speed grades:

• Commercial with a "C" prefix: –C6, –C8

• Industrial with an "I" prefix: –I7, –I8

• Automotive with an "A" prefix: –A7

Chip Altera Cyclone naming rules，Chinese chip Will replace it
