A Comprehensive Guide to 10M04SCE144I7G FPGA - Field Programmable Gate Array non-volatile FPGA

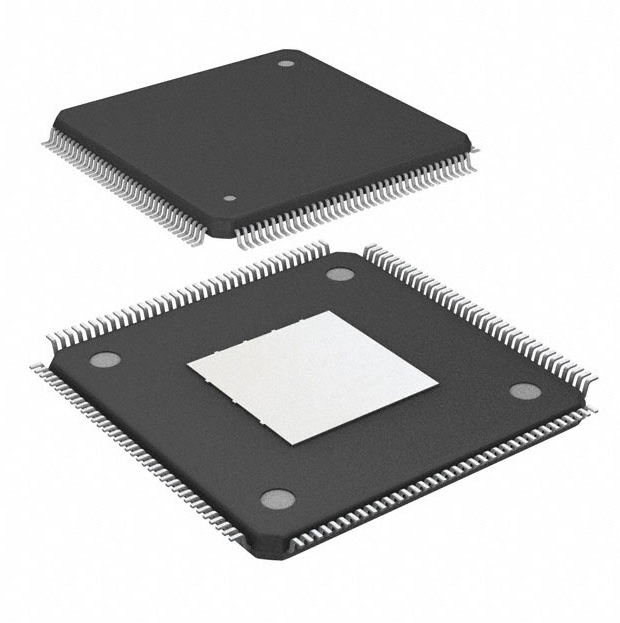

MAX® 10 Field Programmable Gate Array (FPGA) IC 101 193536 4000 144-LQFP Exposed Pad

Intel® MAX® 10 FPGA Device Overview

Intel® MAX® 10 devices are single-chip, non-volatile low-cost programmable logic

devices (PLDs) to integrate the optimal set of system components.

The highlights of the Intel MAX 10 devices include:

• Internally stored dual configuration flash

• User flash memory

• Instant on support

• Integrated analog-to-digital converters (ADCs)

• Single-chip Nios II soft core processor support

Intel MAX 10 devices are the ideal solution for system management, I/O expansion,

communication control planes, industrial, automotive, and consumer applications.

Supporting Feature

Secure on-die flash memory enables device configuration in less than 10 ms

• Single device integrating PLD logic, RAM, flash memory, digital signal processing (DSP), ADC, phase-locked loop (PLL), and I/Os

• Small packages available from 3 mm × 3 mm

• Sleep mode—significant standby power reduction and resumption in less than 1 ms

• Longer battery life—resumption from full power-off in less than 10 ms

Built on TSMC's 55 nm embedded flash process technology

• Intel Quartus® Prime Lite edition (no cost license)

• Platform Designer (Standard) system integration tool

• DSP Builder for Intel FPGAs

• Nios® II Embedded Design Suite (EDS)
