A Comprehensive Guide to 10M08DFV81I7G FPGA - Field Programmable Gate Array

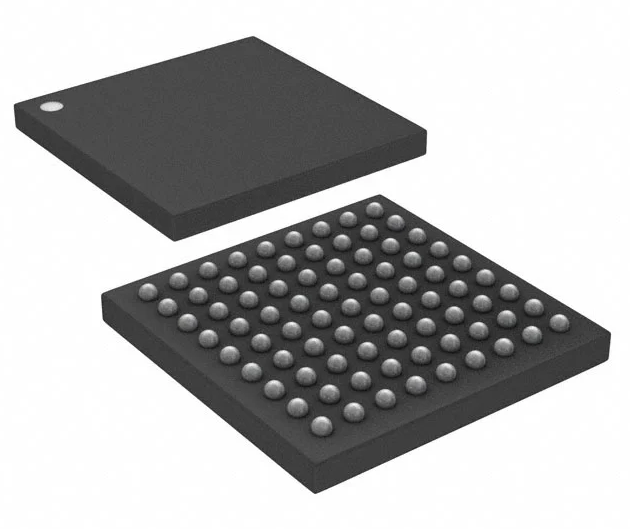

MAX® 10 Field Programmable Gate Array (FPGA) IC 56 387072 8000 81-UFBGA, WLCSP

Intel® MAX® 10 FPGA Device Overview

Intel® MAX® 10 devices are single-chip, non-volatile low-cost programmable logic

devices (PLDs) to integrate the optimal set of system components.

The highlights of the Intel MAX 10 devices include:

• Internally stored dual configuration flash

• User flash memory

• Instant on support

• Integrated analog-to-digital converters (ADCs)

• Single-chip Nios II soft core processor support

Intel MAX 10 devices are the ideal solution for system management, I/O expansion,

communication control planes, industrial, automotive, and consumer applications.

Summary of Intel MAX 10 Device Features

Technology

55 nm TSMC Embedded Flash (Flash + SRAM) process technology

Packaging

• Low cost, small form factor packages—support multiple packaging technologies and pin pitches

• Multiple device densities with compatible package footprints for seamless migration between different device densities

• RoHS6-compliant

Core architecture

• 4-input look-up table (LUT) and single register logic element (LE)

• LEs arranged in logic array block (LAB)

• Embedded RAM and user flash memory

• Clocks and PLLs

• Embedded multiplier blocks

• General purpose I/Os

Internal memory blocks

• M9K—9 kilobits (Kb) memory blocks

• Cascadable blocks to create RAM, dual port, and FIFO functions

User flash memory (UFM)

• User accessible non-volatile storage

• High speed operating frequency

• Large memory size

• High data retention

• Multiple interface option

Embedded multiplier blocks

• One 18 × 18 or two 9 × 9 multiplier modes

• Cascadable blocks enabling creation of filters, arithmetic functions, and image processing pipelines

ADC

• 12-bit successive approximation register (SAR) type

• Up to 17 analog inputs

• Cumulative speed up to 1 million samples per second ( MSPS)

• Integrated temperature sensing capability

Clock networks

• Global clocks support

• High speed frequency in clock network

Internal oscillator

Built-in internal ring oscillator

PLLs

• Analog-based

• Low jitter

• High precision clock synthesis

• Clock delay compensation

• Zero delay buffering

• Multiple output taps

General-purpose I/Os (GPIOs)

• Multiple I/O standards support

• On-chip termination (OCT)

• Up to 830 megabits per second (Mbps) LVDS receiver, 800 Mbps LVDS

transmitter

External memory interface (EMIF) (1)

Supports up to 600 Mbps external memory interfaces:

• DDR3, DDR3L, DDR2, LPDDR2 (on 10M16, 10M25, 10M40, and 10M50.)

• SRAM (Hardware support only)

Note: For 600 Mbps performance, –6 device speed grade is required.

Performance varies according to device grade (commercial, industrial, or

automotive) and device speed grade (–6 or –7). Refer to the Intel MAX

10 FPGA Device Datasheet or External Memory Interface Spec Estimator

for more details.

Configuration

• Internal configuration

• JTAG

• Advanced Encryption Standard (AES) 128-bit encryption and compression

options

• Flash memory data retention of 20 years at 85 °C

Flexible power supply schemes

• Single- and dual-supply device options

• Dynamically controlled input buffer power down

• Sleep mode for dynamic power reduction
