A Comprehensive Guide to 5CEFA7F27I7N Cyclone® V E Field Programmable Gate Array (FPGA) IC

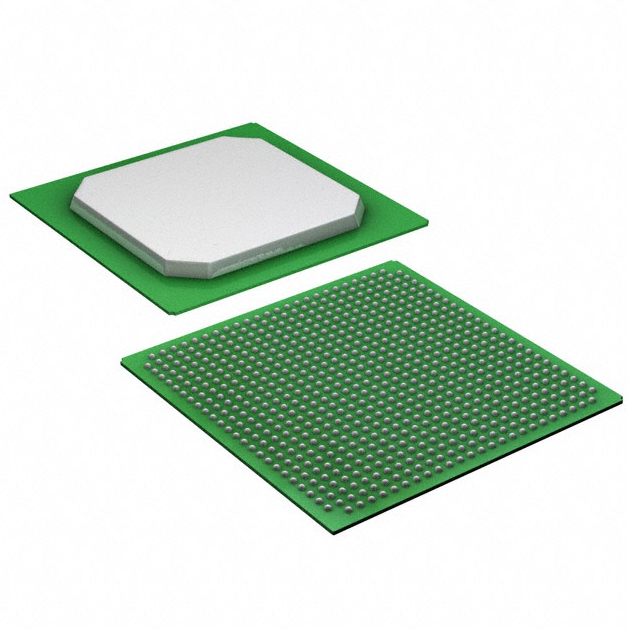

Cyclone® V E Field Programmable Gate Array (FPGA) IC 336 7880704 149500 672-BGA

Summary of Features for Cyclone V Devices

Technology

• TSMC's 28-nm low-power (28LP) process technology

• 1.1 V core voltage

Packaging

• Wirebond low-halogen packages

• Multiple device densities with compatible package footprints for seamless migration between

different device densities

• RoHS-compliant and leaded(1)options

High-performance FPGA fabric

Enhanced 8-input ALM with four registers

Internal memory blocks

• M10K—10-kilobits (Kb) memory blocks with soft error correction code (ECC)

• Memory logic array block (MLAB)—640-bit distributed LUTRAM where you can use up to 25%

of the ALMs as MLAB memory

Embedded Hard IP blocks

Variable-precision DSP

• Native support for up to three signal processing precision levels

(three 9 x 9, two 18 x 18, or one 27 x 27 multiplier) in the same

variable-precision DSP block

• 64-bit accumulator and cascade

• Embedded internal coefficient memory

• Preadder/subtractor for improved efficiency

Memory controller

DDR3, DDR2, and LPDDR2 with 16 and 32 bit ECC support

Embedded transceiver I/O

PCI Express* (PCIe*) Gen2 and Gen1 (x1, x2, or x4) hard IP with

multifunction support, endpoint, and root port

Clock networks

• Up to 550 MHz global clock network

• Global, quadrant, and peripheral clock networks

• Clock networks that are not used can be powered down to reduce dynamic power

Phase-locked loops (PLLs)

• Precision clock synthesis, clock delay compensation, and zero delay buffering (ZDB)

• Integer mode and fractional mode

FPGA General-purpose I/Os (GPIOs)

• 875 megabits per second (Mbps) LVDS receiver and 840 Mbps LVDS transmitter

• 400 MHz/800 Mbps external memory interface

• On-chip termination (OCT)

• 3.3 V support with up to 16 mA drive strength

Low-power high-speed serial interface

• 614 Mbps to 6.144 Gbps integrated transceiver speed

• Transmit pre-emphasis and receiver equalization

• Dynamic partial reconfiguration of individual channels

HPS(Cyclone V SE, SX,and ST devices only)

• Single or dual-core Arm Cortex-A9 MPCore processor-up to 925 MHz maximum frequency with

support for symmetric and asymmetric multiprocessing

• Interface peripherals—10/100/1000 Ethernet media access control (EMAC), USB 2.0

On-The-GO (OTG) controller, quad serial peripheral interface (QSPI) flash controller, NAND

flash controller, Secure Digital/MultiMediaCard (SD/MMC) controller, UART, controller area

network (CAN), serial peripheral interface (SPI), I2C interface, and up to 85 HPS GPIO

interfaces

• System peripherals—general-purpose timers, watchdog timers, direct memory access (DMA)

controller, FPGA configuration manager, and clock and reset managers

• On-chip RAM and boot ROM

• HPS–FPGA bridges—include the FPGA-to-HPS, HPS-to-FPGA, and lightweight HPS-to-FPGA

bridges that allow the FPGA fabric to issue transactions to slaves in the HPS, and vice versa

• FPGA-to-HPS SDRAM controller subsystem—provides a configurable interface to the multiport

front end (MPFE) of the HPS SDRAM controller

• Arm CoreSight™ JTAG debug access port, trace port, and on-chip trace storage

Configuration

• Tamper protection—comprehensive design protection to protect your valuable IP investments

• Enhanced advanced encryption standard (AES) design security features

• CvP

• Dynamic reconfiguration of the FPGA

• Active serial (AS) x1 and x4, passive serial (PS), JTAG, and fast passive parallel (FPP) x8 and

x16 configuration options

• Internal scrubbing (2)

• Partial reconfiguration (3)
