A Comprehensive Guide To AGL030V5-QNG68I IGLOO Field Programmable Gate Array (FPGA) IC 49 768 68-VFQFN Exposed Pad

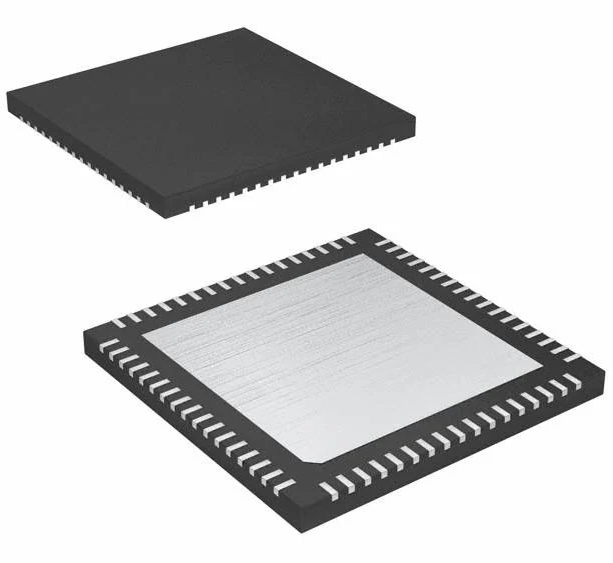

IGLOO Field Programmable Gate Array (FPGA) IC 49 768 68-VFQFN Exposed Pad

General Description

The IGLOO family of flash FPGAs, based on a 130-nm flash process, offers the lowest power FPGA, a single-chip solution,

small footprint packages, reprogrammability, and an abundance of advanced features.

The Flash*Freeze technology used in IGLOO devices enables entering and exiting an ultra-low power mode that

consumes as little as 5 μW while retaining SRAM and register data. Flash*Freeze technology simplifies power management

through I/O and clock management with rapid recovery to operation mode.

The Low Power Active capability (static idle) allows for ultra-low power consumption (from 12 μW) while the IGLOO device

is completely functional in the system. This allows the IGLOO device to control system power management based on

external inputs (e.g., scanning for keyboard stimulus) while consuming minimal power.

Nonvolatile flash technology gives IGLOO devices the advantage of being a secure, low power, single-chip solution that is

Instant On. IGLOO is reprogrammable and offers time-to-market benefits at an ASIC-level unit cost.

These features enable designers to create high-density systems using existing ASIC or FPGA design flows and tools.

IGLOO devices offer 1 kbit of on-chip, reprogrammable, nonvolatile FlashROM storage as well as clock conditioning

circuitry based on an integrated phase-locked loop (PLL). The AGL015 and AGL030 devices have no PLL or RAM support.

IGLOO devices have up to 1 million system gates, supported with up to 144 kbits of true dual-port SRAM and up to 300

user I/Os.

M1 IGLOO devices support the high-performance, 32-bit Cortex-M1 processor developed by ARM for implementation in

FPGAs. Cortex-M1 is a soft processor that is fully implemented in the FPGA fabric. It has a three-stage pipeline that offers

a good balance between low power consumption and speed when implemented in an M1 IGLOO device. The processor

runs the ARMv6-M instruction set, has a configurable nested interrupt controller, and can be implemented with or

without the debug block. Cortex-M1 is available for free from Microsemi for use in M1 IGLOO FPGAs.

The ARM-enabled devices have ordering numbers that begin with M1AGL and do not support AES decryption.

Features and Benefits

• Low Power

      1.2 V to 1.5 V Core Voltage Support for Low Power

      Supports Single-Voltage System Operation

      5 μW Power Consumption in Flash*Freeze Mode

      Low Power Active FPGA Operation

      Flash*Freeze Technology Enables Ultra-Low Power Consumption while MaintainingFPGA Content

      Easy Entry to / Exit from Ultra-Low Power Flash*Freeze Mode

• High Capacity

      15K to 1 Million System Gates

      Up to 144 Kbits of True Dual-Port SRAM

      Up to 300 User 1/Os

• Reprogrammable Flash Technology

      130-nm, 7-Layer Metal, Flash-Based CMOS Process

      Instant On Level 0 Support

      Single-Chip Solution

      Retains Programmed Design When Powered Off

      250 MHz (1.5 V systems) and 160 MHz (1.2 V systems) System Performance

• In-System Programming (ISP) and Security

      ISP Using On-Chip 128-Bit Advanced Encryption Standard (AES) Decryption (except ARM®-enabled IGLOO®devices)

      via JTAG (IEEE 1532-compliant)

      FlashLock®Designed to Secure FPGA Contents

• High-Performance Routing Hierarchy

      Segmented, Hierarchical Routing and Clock Structure

• Advanced l/O

      700 Mbps DDR,LVDS-Capable I/Os (AGL250 and above)

      1.2 V, 1.5 V, 1.8 V, 2.5V, and 3.3 V Mixed-Voltage Operation

      Bank-Selectable I/O Voltages--up to 4 Banks per Chip

      Single-Ended I/O Standards:LVTTL,LVCMOS 3.3V/2.5 V/ 1.8 V /1.5 V/ 1.2 .V, 3.3 V PCI/ 3.3 V PCI-X, and LVCMOS

      2.5 V/5.0V Input

      DifferentialI/O Standards:LVPECL，LVDS，B-LVDS,and M-LVDS (AGL250 and above)

      Wide Range Power Supply Voltage Support per JESD8-B, Allowing I/Os to Operate from 2.7 V to 3.6 V

      Wide Range Power Supply Voltage Support per JESD8-12, Allowing I/Os to Operate from 1.14 V to 1.575V

      I/O Registers on Input, Output, and Enable Paths

      Hot-Swappable and Cold-Sparing,I/Os+

      Programmable Output Slew Rateand Drive Strength

      Weak Pull-Up/-Down

      IEEE 1149.1 (JTAG) Boundary Scan Test

      Pin-Compatible Packages across the IGLOO Family

• Clock Conditioning Circuit(CCC) and PLL

      Six CCC Blocks, One with an Integrated PLL

      Configurable Phase Shift, Multiply/Divide,Delay Capabilities, and External Feedback

      Wide Input Frequency Range (1.5 MHz up to 250 MHz)

• Embedded Memory

      1 kbit of FlashROM User Nonvolatile Memory

      SRAMs and FIFOs with Variable-Aspect-Ratio4,608-Bit RAM Blocks (x1,x2,x4, x9, and x18 organizations)

      True Dual-Port SRAM (except x18)

• ARM Processor Support in IGLOO FPGAs

      M1 IGLOO Devices--Cortex®-M1 Soft Processor Available with or without Debug
