A Comprehensive Guide to EP4CGX150CF23I7N Cyclone® IV GX Field Programmable Gate Array (FPGA) IC

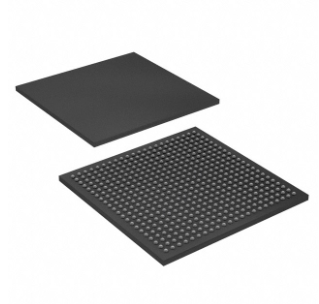

Cyclone® IV GX Field Programmable Gate Array (FPGA) IC 270 6635520 149760 484-BGA

Introduction

The CycloneTM field programmable gate array family is based ona 1.5-V,

0.13-um, alayer copper SRAM process, with densities up to 20,060 logic

elements (LEs) and up to 288 Kbits of RAM. With features like phase-

locked loops (PLLs) for clocking and a dedicated double data rate (DDR)

interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory

requirements, Cyclone devices are a cost effective solution for data-path

applications. Cyclone devices support various I/O standards, including

LVDS at data rates up to 311 megabits per second (Mbps) and 66-MHz,

32-bit peripheral component interconnect (PCI), for interfacing with and

supporting ASSP and ASIC devices. Altera also offers new low-cost serial

configuration devices to configure Cyclone devices.

Features

■Up to 294,912 RAM bits (36,864 bytes)

■Supports configuration through low-cost serial configuration device

■Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards

■Support for 66-MHz, 32-bit PCI standard

■Low speed (311 Mbps) LVDS 1/O support

■Up to two PLLs per device provide clock multiplication and phase shifting

■Up to eight global clock lines with six clock resources available per

logic array block (LAB) row

■Support for external memory, induding DDR SDRAM (133 MHz),

FCRAM, and single data rate (SDR) SDRAM

■Support for multiple intellectual property (IP) cores, including

Altera" MegaCore functions and Altera Megafunctions Partners

Program (AMPPSM) megafunctions
