A Comprehensive Guide to EP4CGX15BF14C8N FPGA - Field Programmable Gate Array

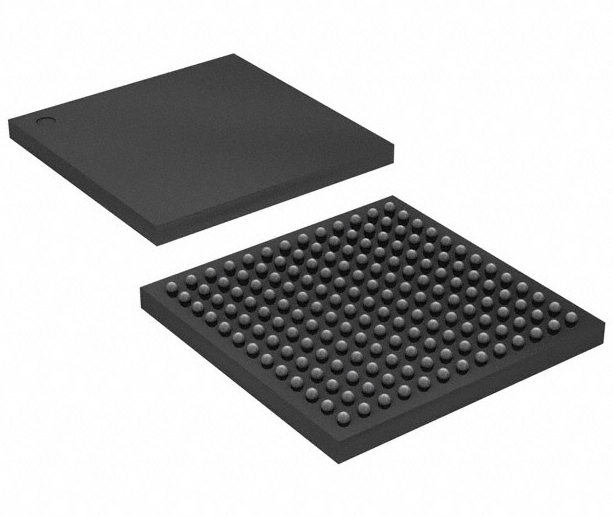

Cyclone® IV GX Field Programmable Gate Array (FPGA) IC 72 552960 14400 169-LBGA

Introduction

This chapter describes the electrical and switching characteristics for Cyclone IV

devices. Electrical characteristics include operating conditions and power

consumption. Switching characteristics include transceiver specifications, core, and

periphery performance. This chapter also describes I/O timing, including

programmable I/O element (IOE) delay and programmable output buffer delay.

Operating Conditions

When Cyclone IV devices are implemented in a system, they are rated according to a

set of defined parameters. To maintain the highest possible performance and

reliability of Cyclone IV devices, you must consider the operating requirements

described in this chapter.

Cyclone IV devices are offered in commercial, industrial, extended industrial and,

automotive grades. Cyclone IV E devices offer –6 (fastest), –7, –8, –8L, and –9L speed

grades for commercial devices, –8L speed grades for industrial devices, and –7 speed

grade for extended industrial and automotive devices. Cyclone IV GX devices offer

–6 (fastest), –7, and –8 speed grades for commercial devices and –7 speed grade for

industrial devices.
