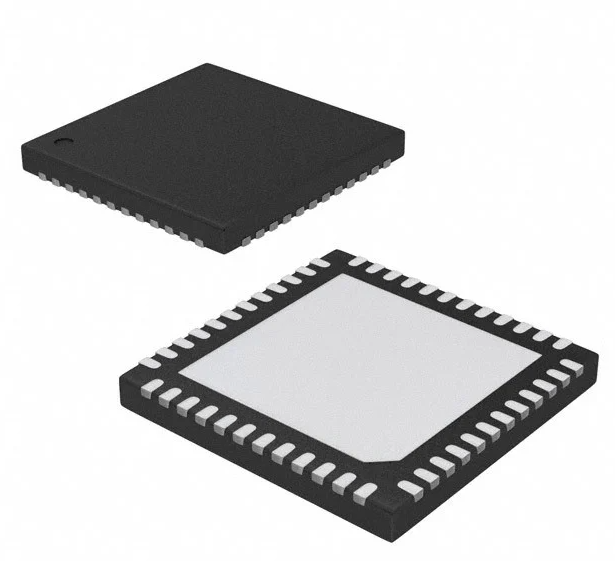

A Comprehensive Guide To ICE40UP5K-SG48I iCE40 UltraPlus™ Field Programmable Gate Array (FPGA) IC 39 1171456 5280 48-VFQFN Exposed Pad

iCE40 UltraPlus™ Field Programmable Gate Array (FPGA) IC 39 1171456 5280 48-VFQFN Exposed Pad

General Description

iCE40 UltraPlus™ family from Lattice Semiconductor is an ultra-low power FPGA and sensor manager designed for

ultra-low power mobile applications, such as smartphones, tablets and hand-held devices. iCE40 UltraPlus is compatible

with Lattice's iCE40 Ultra family devices, containing all the functions iCE40 Ultra family has except the high current IR LED

driver. In addition, the iCE40 UltraPlus features an additional 1 Mb SRAM, additional DSP blocks, with additional LUTs, all

which can be used to support an always-on Voice Recognition function in the mobile devices, without the need to keep

the higher power consuming voice codec on allthe time.

The iCE40 UltraPlus family includes integrated SPI and I²C blocks to interface with virtually all mobile sensors and

application processors. In addition, the iCE40 UltraPlus family also features two I/O pins that can support the interface to

I3C devices. There are two on-chip oscillators, 10 kHz and 48 MHz, the LFOSC (10 kHz) is ideal for low power function in

always-onapplications, while HFOSC (48 MHz) can be used for awaken activities.

The iCE40 UltraPlus family also features DSP functional block to off-load Application Processor to pre-process information

sent from the mobile device, such as voice data. The RGB PWM IP, with the three 24 mA constant current RGB outputs on

the iCE40 UltraPlus provides all the necessary logic to directly drive the service LED, without the need of external MOSFET

or buffer.

The iCE40 UltraPlus family of devices are targeting for mobile applications to perform all the functions in iCE40 Ultra

devices, such as Service LED, GPIO Expander, SDIO Level Shift, and other custom functions. In addition, the iCE40

UltraPlus family devices are also targeting for Voice Recognition application.

The iCE40 UltraPlus family features two device densities, 2800 to 5280 Look Up Tables (LUTs) of logic with programmable

I/Os that can be used as either SPI/I²C interface ports or general purpose I/O’s. Two of the iCE40 UltraPlus I/Os can be

used to interface to higher performance I3C. It also has up to 120 kb of Block RAMs, plus 1024 kb of Single Port SRAMs

to work with user logic.

Features

• Flexible Logic Architecture

      Two devices with 2800 to 5280 LUTs

      Offered in WLCS and QFN packages

• Ultra-low Power Devices

      Advanced 40 nm low power process

      As low as 100 µA standby current typical

• Embedded Memory

      Up to 1024 kb Single Port SRAM

      Up to 120 kb sysMEM™ Embedded Block RAM

• Two Hardened I²C Interfaces

      Two I/O pins to support I3C interface

• Two Hardened SPI Interfaces

• Two On-Chip Oscillators

      Low Frequency Oscillator – 10 kHz

      High Frequency Oscillator – 48 MHz

• 24 mA Current Drive RGB LED Outputs

      Three drive outputs in each device

      User selectable sink current up to 24 mA

• On-chip DSP

      Signed and unsigned 8-bit or 16-bit functions

      Functions include Multiplier, Accumulator, and Multiply-Accumulate (MAC)

• Flexible On-Chip Clocking

      Eight low skew global signal resource, six can be directly driven from external pins

      One PLL with dynamic interface per device

• Flexible Device Configuration

      SRAM is configured through:

      Standard SPI Interface

      Internal Nonvolatile Configuration Memory (NVCM)

• Ultra-Small Form Factor

      As small as 2.11 mm × 2.54 mm

• Applications

      Always-On Voice Recognition Application

      Smartphones

      Tablets and Consumer Handheld Devices

      Handheld Commercial and Industrial Devices

      Multi Sensor Management Applications

      Sensor Pre-processing and Sensor Fusion

      Always-On Sensor Applications

      USB 3.1 Type C Cable Detect / Power Delivery Applications
