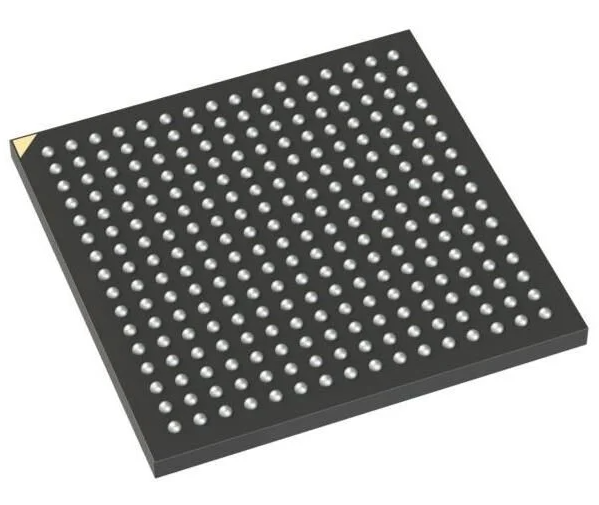

MachXO3 Field Programmable Gate Array (FPGA) IC 206 245760 6864 256-LFBGA
General Description
MachXO3™ device family is an Ultra-Low Density family that supports the most advanced programmable bridging and
I/O expansion. It has the breakthrough I/O density and the lowest cost per I/O. The device I/O features have the
integrated support for latest industry standard I/O.
The MachXO3L/LF family of low power, instant-on, non-volatile PLDs has five devices with densities ranging from 640 to
9400 Look-Up Tables (LUTs). In addition to LUT-based, low-cost programmable logic these devices feature Embedded
Block RAM (EBR), Distributed RAM, Phase Locked Loops (PLLs), pre-engineered source synchronous I/O support, advanced
configuration support including dual-boot capability and hardened versions of commonly used functions such as SPI
controller, I2C controller and timer/counter. MachXO3LF devices also support User Flash Memory (UFM). These features
allow these devices to be used in low cost, high volume applications such as consumer electronics, compute and storage,
wireless communications, industrial control, and automotive systems.
The MachXO3L/LF devices are designed on a 65 nm non-volatile low power process. The device architecture has several
features such as programmable low swing differential I/O and the ability to turn off I/O banks, on-chip PLLs and
oscillators dynamically. These features help manage static and dynamic power consumption resulting in low static power
for all members of the family.
The MachXO3L/LF devices are available in two versions C and E with two speed grades: -5 and -6, with -6 being the
fastest. C devices have an internal linear voltage regulator which supports external VCC supply voltages of 3.3 V or 2.5 V.
E devices only accept 1.2 V as the external VCC supply voltage. With the exception of power supply voltage both C and E
are functionally compatible with each other.
The MachXO3L/LF PLDs are available in a broad range of advanced halogen-free packages ranging from the space saving
2.5 x 2.5 mm WLCSP to the 19 x 19 mm caBGA. MachXO3L/LF devices support density migration within the same package.
Table 1.1 shows the LUT densities, package and I/O options, along with other key parameters.
The MachXO3L/LF devices offer enhanced I/O features such as drive strength control, slew rate control, PCI compatibility,
bus-keeper latches, pull-up resistors, pull-down resistors, open drain outputs and hot socketing. Pull-up, pull-down and
bus-keeper features are controllable on a “per-pin” basis. A user-programmable internal oscillator is included in
MachXO3L/LF devices. The clock output from this oscillator may be divided by the timer/counter for use as clock input in
functions such as LED control, keyboard scanner and similar state machines.
The MachXO3L/LF devices also provide flexible, reliable and secure configuration from on-chip NVCM/Flash. These
devices can also configure themselves from external SPI Flash or be configured by an external master through the JTAG
test access port or through the I²C port. Additionally, MachXO3L/LF devices support dual-boot capability (using external
Flash memory) and remote field upgrade (TransFR) capability.
Lattice provides a variety of design tools that allow complex designs to be efficiently implemented using the
MachXO3L/LF family of devices. Popular logic synthesis tools provide synthesis library support for MachXO3L/LF. Lattice
design tools use the synthesis tool output along with the user-specified preferences and constraints to place and route
the design in the MachXO3L/LF device. These tools extract the timing from the routing and back-annotate it into the
design for timing verification.
Lattice provides many pre-engineered IP (Intellectual Property) LatticeCORE™ modules, including a number of reference
designs licensed free of charge, optimized for the MachXO3L/LF PLD family. By using these configurable soft core IP
cores as standardized blocks, users are free to concentrate on the unique aspects of their design, increasing their
productivity.
Features
Solutions
Smallest footprint, lowest power, high data throughput bridging solutions for mobile applications
Optimized footprint, logic density, I/O count, I/O performance devices for I/O management and logic applications
High I/O logic, lowest cost I/O, high I/O devices for I/O expansion applications
Flexible Architecture
Logic Density ranging from 64 to 9.4 k LUT4
High I/O to LUT ratio with up to 384 I/O pins
Advanced Packaging
0.4 mm pitch: 1 k to 4 k densities in very small footprint WLCSP (2.5 mm × 2.5 mm to 3.8 mm × 3.8 mm) with 28 to
63 I/O
0.5 mm pitch: 640 to 9.4 k LUT densities in 6 mm x 6 mm to 10 mm x 10 mm BGA packages with up to281 I/O
0.8 mm pitch: 1 k to 9.4 k densities with up to 384 I/O in BGA packages
Pre-Engineered Source Synchronous I/O
DDR registers in I/O cells
Dedicated gearing logic
7:1 Gearing for Display I/O
Generic DDR, DDRx2, DDRx4
High Performance, Flexible I/O Buffer
Programmable sysI/O™ buffer supports wide range of interfaces:
LVCMOS 3.3/2.5/1.8/1.5/1.2
LVTTL
LVDS, Bus-LVDS, MLVDS, LVPECL
MIPI D-PHY Emulated
Schmitt trigger inputs, up to 0.5 V hysteresis
Ideal for I/O bridging applications
I/O support hot socketing
On-chip differential termination
Programmable pull-up or pull-down mode
Flexible On-Chip Clocking
Eight primary clocks
Up to two edge clocks for high-speed I/O interfaces (top and bottom sides only)
Up to two analog PLLs per device with fractional-n frequency synthesis
Wide input frequency range (7 MHz to 400 MHz).
Non-volatile, Multi-time Programmable
Instant-on
Powers up in microseconds
Optional dual boot with external SPI memory
Single-chip, secure solution
Programmable through JTAG, SPI or I2C
MachXO3L includes multi-time programmable NVCM
MachXO3LF reconfigurable Flash includes 100,000 write/erase cycle for commercial/industrial devices and 10,000 for
automotive devices
Supports background programming of non volatile memory
TransFR Reconfiguration
In-field logic update while I/O holds the system state
Enhanced System Level Support
On-chip hardened functions: SPI, I2C, timer/counter
On-chip oscillator with 5.5% accuracy for commercial/industrial devices
Unique TraceID for system tracking
Single power supply with extended operatingrange
IEEE Standard 1149.1 boundary scan
IEEE 1532 compliant in-system programming
Applications
Consumer Electronics
Compute and Storage
Wireless Communications
Industrial Control Systems
Automotive System
Low Cost Migration Path
Migration from the Flash based MachXO3LF to the NVCM based MachXO3L
Pin compatible and equivalent timing
