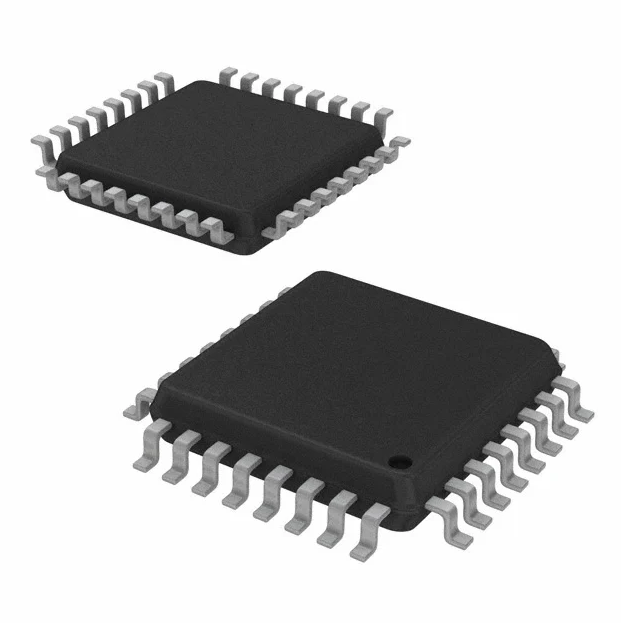

A Comprehensive Guide To MC56F8006VLC Microcontroller IC 16-Bit 32MHz 16KB (8K x 16) FLASH 32-LQFP (7x7)

56800E 56F8xxx Microcontroller IC 16-Bit 32MHz 16KB (8K x 16) FLASH 32-LQFP (7x7)

Overview

This document provides an overview of the major features and functional components of the

MC56F8006/MC56F8002 series of digital signal controllers (DSCs).

The devices in the MC56F8006/MC56F8002 series combine, on a single chip, the processing power of a

digital signal processor (DSP) and the functionality of a microcontroller unit (MCU) with a flexible set of peripherals

to create an extremely cost-effective solution.

The MC56F8006/MC56F8002 uses the 56800E core, which is based on a dual Harvard-style architecture consisting of

three execution units operating in parallel. This allows as many as six operations per instruction cycle. The MCU-style

programming model and optimized instruction set allow straightforward generation of efficient, compact DSP and

control code. The instruction set is also highly efficient for C compilers to enable rapid development of optimized

control applications.

A full set of programmable peripherals supports various applications. Any signal pin associated with these peripherals can also

be used for general-purpose input/output (GPIO). Power-saving features include an extremely low-power mode and the ability

to shut down each peripheral independently.

56F8006/56F8002 Features

1.Core

• Efficient 16-bit 56800E family digital signal controller (DSC) engine with dual Harvard architecture

• As many as 32 million instructions per second (MIPS) at 32 MHz core frequency

• 155 basic instructions in conjunction with up to 20 address modes

• Single-cycle 16  16-bit parallel multiplier-accumulator (MAC)

• Four 36-bit accumulators, including extension bits

• 32-bit arithmetic and logic multi-bit shifter

• Parallel instruction set with unique DSP addressing modes

• Hardware DO and REP loops

• Three internal address buses

• Four internal data buses

• Instruction set supports DSP and controller functions

• Controller-style addressing modes and instructions for compact code

• Efficient C compiler and local variable support

• Software subroutine and interrupt stack with depth limited only by memory

• JTAG/enhanced on-chip emulation (EOnCE) for unobtrusive, processor speed–independent, real-time debugging

2.Operation Range

• 1.8 V to 3.6 V operation (power supplies and I/O)

• From power-on-reset: approximately 1.9 V to 3.6 V

• Ambient temperature operating range:

— –40 °C to 125 °C

3.Memory

• Dual Harvard architecture permits as many as three simultaneous accesses to program and data memory

• Flash security and protection that prevent unauthorized users from gaining access to the internal flash

• On-chip memory

— 16 KB of program flash for 56F8006 and 12 KB of program flash for 56F8002

— 2 KB of unified data/program RAM

• EEPROM emulation capability using flash

4.Interrupt Controller

• Five interrupt priority levels

— Three user programmable priority levels for each interrupt source: Level 0, 1, 2

— Unmaskable level 3 interrupts include: illegal instruction, hardware stack overflow, misaligned data access, SWI3

instruction. Maskable level 3 interrupts include: EOnCE step counter, EOnCE breakpoint unit, EOnCE trace

buffer

— Lowest-priority software interrupt: level LP

• Allow nested interrupt that higher priority level interrupt request can interrupt lower priority interrupt subroutine

• The masking of interrupt priority level is managed by the 56800E core

• One programmable fast interrupt that can be assigned to any interrupt source

• Notification to system integration module (SIM) to restart clock out of wait and stop states

• Ability to relocate interrupt vector table

5.Peripheral Highlights

• One multi-function, six-output pulse width modulator (PWM) module

— Up to 96 MHz PWM operating clock

— 15 bits of resolution

— Center-aligned and edge-aligned PWM signal mode

— Phase shifting PWM pulse generation

— Four programmable fault inputs with programmable digital filter

— Double-buffered PWM registers

— Separate deadtime insertions for rising and falling edges

— Separate top and bottom pulse-width correction by means of software

— Asymmetric PWM output within both Center Aligned and Edge Aligned operation

— Separate top and bottom polarity control

— Each complementary PWM signal pair allows selection of a PWM supply source from:

– PWM generator

– Internal timers

– Analog comparator outputs

• Two independent 12-bit analog-to-digital converters (ADCs)

— 2 x 14 channel external inputs plus seven internal inputs

— Support simultaneous and software triggering conversions

— ADC conversions can be synchronized by PWM and PDB modules

— Sampling rate up to 400 KSPS for 10- or 12-bit conversion result; 470 KSPS for 8-bit conversion result

— Two 16-word result registers

• Two programmable gain amplifier (PGAs)

— Each PGA is designed to amplify and convert differential signals to a single-ended value fed to one of the ADC

inputs

— 1X, 2X, 4X, 8X, 16X, or 32X gain

— Software and hardware triggers are available

— Integrated sample/hold circuit

— Includes additional calibration features:

– Offset calibration eliminates any errors in the internal reference used to generate the VDDA/2 output center

point

– Gain calibration can be used to verify the gain of the overall datapath

– Both features require software correction of the ADC result

• Three analog comparators (CMPs)

— Selectable input source includes external pins, internal DACs

— Programmable output polarity

— Output can drive timer input, PWM fault input, PWM source, external pin output, and trigger ADCs

— Output falling and rising edge detection able to generate interrupts

• One dual channel 16-bit multi-purpose timer module (TMR)

— Two independent 16-bit counter/timers with cascading capability

— Up to 96 MHz operating clock

— Each timer has capture and compare and quadrature decoder capability

— Up to 12 operating modes

— Four external inputs and two external outputs

• One serial communication interface (SCI) with LIN slave functionality

— Up to 96 MHz operating clock

— Full-duplex or single-wire operation

— Programmable 8- or 9- bit data format

— Two receiver wakeup methods:

– Idle line

– Address mark

— 1/16 bit-time noise detection

• One serial peripheral interface (SPI)

— Full-duplex operation

— Master and slave modes

— Programmable length transactions (2 to 16 bits)

— Programmable transmit and receive shift order (MSB as first or last bit transmitted)

— Maximum slave module frequency = module clock frequency/2

• One inter-integrated Circuit (I2C) port

— Operates up to 400 kbps

— Supports master and slave operation

— Supports 10-bit address mode and broadcasting mode

— Supports SMBus, Version 2

• One 16-bit programmable interval timer (PIT)

— 16 bit counter with programmable counter modulo

— Interrupt capability

• One 16-bit programmable delay block (PDB)

— 16 bit counter with programmable counter modulo and delay time

— Counter is initiated by positive transition of internal or external trigger pulse

— Supports two independently controlled delay pulses used to synchronize PGA and ADC conversions with input

trigger event

— Two PDB outputs can be ORed together to schedule two conversions from one input trigger event

— PDB outputs can be can be used to schedule precise edge placement for a pulsed output that generates the control

signal for the CMP windowing comparison

— Supports continuous or single shot mode

— Bypass mode supported

• Computer operating properly (COP)/watchdog timer capable of selecting different clock sources

— Programmable prescaler and timeout period

— Programmable wait, stop, and partial powerdown mode operation

— Causes loss of reference reset 128 cycles after loss of reference clock to the PLL is detected

— Choice of clock sources from four sources in support of EN60730 and IEC61508:

– On-chip relaxation oscillator

– External crystal oscillator/external clock source

– System clock (IPBus up to 32 MHz)

– On-chip low power 1 kHz oscillator

• Real-timer counter (RTC)

— 8-bit up-counter

— Three software selectable clock sources

– External crystal oscillator/external clock source

– On-chip low-power 1 kHz oscillator

– System bus (IPBus up to 32 MHz)

— Can signal the device to exit power down mode

• Phase lock loop (PLL) provides a high-speed clock to the core and peripherals

— Provides 3x system clock to PWM and dual timer and SCI

— Loss of lock interrupt

— Loss of reference clock interrupt

• Clock sources

— On-chip relaxation oscillator with two user selectable frequencies: 400 kHz for low speed mode, 8 MHz for

normal operation

— On-chip low-power 1 kHz oscillator can be selected as clock source to the RTC and/or COP

— External clock: crystal oscillator, ceramic resonator, and external clock source

• Power management controller (PMC)

— On-chip regulator for digital and analog circuitry to lower cost and reduce noise

— Integrated power-on reset (POR)

— Low-voltage interrupt with a user selectable trip voltage of 1.81 V or 2.31 V

— User selectable brown-out reset

— Run, wait, and stop modes

— Low-power run, wait, and stop modes

— Partial power down mode

• Up to 40 general-purpose I/O (GPIO) pins

— Individual control for each pin to be in peripheral or GPIO mode

— Individual input/output direction control for each pin in GPIO mode

— Hysteresis and configurable pullup device on all input pins

— Configurable slew rate and drive strength and optional input low pass filters on all output pins

— 20 mA sink/source current

• JTAG/EOnCE debug programming interface for real-time debugging

— IEEE 1149.1 Joint Test Action Group (JTAG) interface

— EOnCE interface for real-time debugging

6.Power Saving Features

• Three low power modes

— Low-speed run, wait, and stop modes: 200 kHz IP bus clock provided by ROSC

— Low-power run, wait, and stop modes: clock provided by external 32–38.4 kHz crystal

— Partial power down mode

• Low power external oscillator can be used in any low-power mode to provide accurate clock to active peripherals

• Low power real time counter for use in run, wait, and stop modes with internal and external clock sources

• 32 s typical wakeup time from partial power down modes

• Each peripheral can be individually disabled to save power
