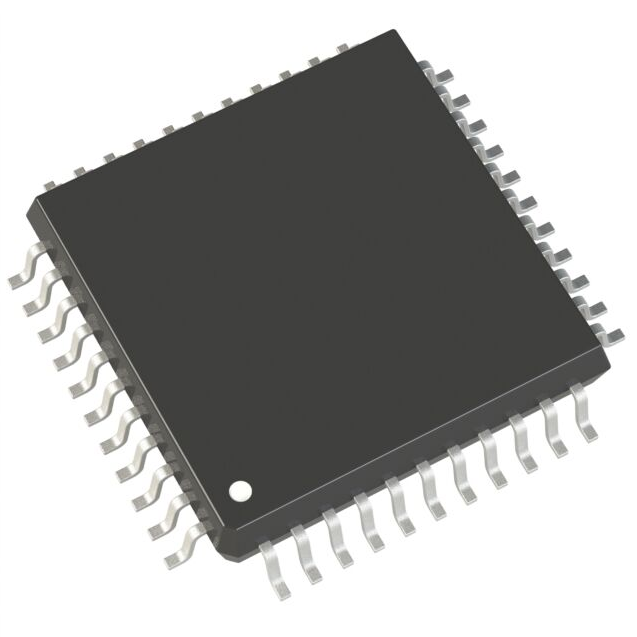

A Comprehensive Guide To MC56F8025MLD Microcontroller IC 16-Bit 32MHz 32KB (16K x 16) FLASH 44-LQFP (10x10)

56800E 56F8xxx Microcontroller IC 16-Bit 32MHz 32KB (16K x 16) FLASH 44-LQFP (10x10)

56F8033/56F8023 Description

The 56F8033/56F8023 is a member of the 56800E core-based family of Digital Signal Controllers

(DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a

microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. Because

of its low cost, configuration flexibility, and compact program code, the 56F8033/56F8023 is well-suited

for many applications. The 56F8033/56F8023 includes many peripherals that are especially useful for

industrial control, motion control, home appliances, general-purpose inverters, smart sensors, fire and

security systems, switched-mode power supply, power management, and medical monitoring

applications.

The 56800E core is based on a dual Harvard-style architecture consisting of three execution units

operating in parallel, allowing as many as six operations per instruction cycle. The MCU-style

programming model and optimized instruction set allow straightforward generation of efficient, compact

DSP and control code. The instruction set is also highly efficient for C compilers to enable rapid

development of optimized control applications.

The 56F8033/56F8023 supports program execution from internal memories. Two data operands can be

accessed from the on-chip data RAM per instruction cycle. The 56F8033/56F8023 also offers up to 26

General-Purpose Input/Output (GPIO) lines, depending on peripheral configuration.

The 56F8033 Digital Signal Controller includes 64KB of Program Flash and 8KB of Unified

Data/Program RAM. The 56F8023 Digital Signal Controller includes 32KB of Program Flash and 4KB of

Unified Data/Program RAM. Program Flash memory can be independently bulk erased or erased in pages.

Program Flash page erase size is 512 Bytes (256 Words).

56F8033/56F8023 Features

Digital Signal Controller Core

• Efficient 16-bit 56800E family Digital Signal Controller (DSC) engine with dual Harvard architecture

• As many as 32 Million Instructions Per Second (MIPS) at 32MHz core frequency

• Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC)

• Four 36-bit accumulators, including extension bits

• 32-bit arithmetic and logic multi-bit shifter

• Parallel instruction set with unique DSP addressing modes

• Hardware DO and REP loops

• Three internal address buses

• Four internal data buses

• Instruction set supports both DSP and controller functions

• Controller-style addressing modes and instructions for compact code

• Efficient C compiler and local variable support

• Software subroutine and interrupt stack with depth limited only by memory

• JTAG/Enhanced On-Chip Emulation (OnCE) for unobtrusive, processor speed-independent, real-time

debugging
