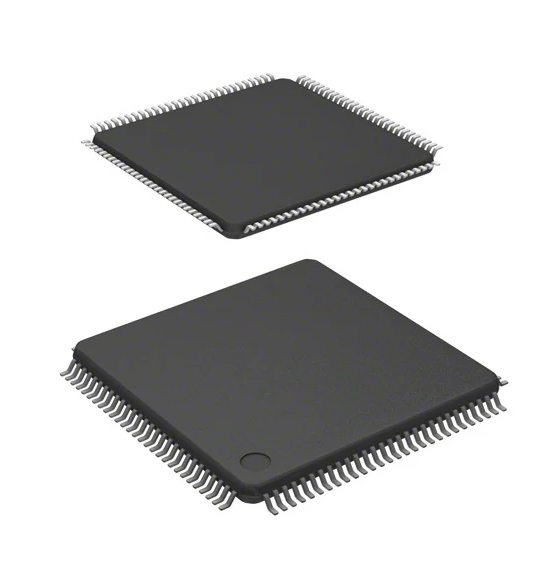

A Comprehensive Guide To MC9S12A64CPVE Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 112-LQFP (20x20)

HCS12 HCS12 Microcontroller IC 16-Bit 25MHz 64KB (64K x 8) FLASH 112-LQFP (20x20)

MC9S12DJ64

Covers also

MC9S12D64, MC9S12A64,

MC9S12D32,MC9S12A32

Overview

The MC9S12DJ64 microcontroller unit (MCU) is a 16-bit device composed of standard on-chip

peripherals including a 16-bit central processing unit (HCS12 CPU), 64K bytes of Flash EEPROM, 4K

bytes of RAM, 1K bytes of EEPROM, two asynchronous serial communications interfaces (SCI), one

serial peripheral interfaces (SPI), an 8-channel IC/OC enhanced capture timer, two 8-channel, 10-bit

analog-to-digital converters (ADC), an 8-channel pulse-width modulator (PWM), a digital Byte Data Link

Controller (BDLC), 29 discrete digital I/O channels (Port A, Port B, Port K and Port E), 20 discrete digital

I/O lines with interrupt and wakeup capability, a CAN 2.0 A, B software compatible modules

(MSCAN12), and an Inter-IC Bus. The MC9S12DJ64 has full 16-bit data paths throughout. However, the

external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for lower

cost systems. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to

suit operational requirements.

Features

• HCS12 Core

– 16-bit HCS12 CPU

i. Upward compatible with M68HC11 instruction set

ii. Interrupt stacking and programmer’s model identical to M68HC11

iii.Instruction queue

iv. Enhanced indexed addressing

– MEBI (Multiplexed External Bus Interface)

– MMC (Module Mapping Control)

– INT (Interrupt control)

– BKP (Breakpoints)

– BDM (Background Debug Mode)

• CRG (low current Colpitts or Pierce oscillator, PLL, reset, clocks, COP watchdog, real time

interrupt, clock monitor)

• 8-bit and 4-bit ports with interrupt functionality

– Digital filtering

– Programmable rising or falling edge trigger

• Memory

– 64K Flash EEPROM

– 1K byte EEPROM

– 4K byte RAM

• Two 8-channel Analog-to-Digital Converters

– 10-bit resolution

– External conversion trigger capability

• 1M bit per second, CAN 2.0 A, B software compatible module

– Five receive and three transmit buffers

– Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit

– Four separate interrupt channels for Rx, Tx, error and wake-up

– Low-pass filter wake-up function

– Loop-back for self test operation

• Enhanced Capture Timer

– 16-bit main counter with 7-bit prescaler

– 8 programmable input capture or output compare channels

– Four 8-bit or two 16-bit pulse accumulators

• 8 PWM channels

– Programmable period and duty cycle

– 8-bit 8-channel or 16-bit 4-channel

– Separate control for each pulse width and duty cycle

– Center-aligned or left-aligned outputs

– Programmable clock select logic with a wide range of frequencies

– Fast emergency shutdown input

– Usable as interrupt inputs

• Serial interfaces

– Two asynchronous Serial Communications Interfaces (SCI)

– Synchronous Serial Peripheral Interface (SPI)

• Byte Data Link Controller (BDLC)

– SAE J1850 Class B Data Communications Network Interface Compatible and ISO Compatible

for Low-Speed (<125 Kbps) Serial Data Communications in Automotive Applications

• Inter-IC Bus (IIC)

– Compatible with I2C Bus standard

– Multi-master operation

– Software programmable for one of 256 different serial clock frequencies

• 112-Pin LQFP or 80 QFP package

– I/O lines with 5V input and drive capability

– 5V A/D converter inputs

– Operation at 50MHz equivalent to 25MHz Bus Speed

– Development support

– Single-wire background debug™ mode (BDM)

– On-chip hardware breakpoints
