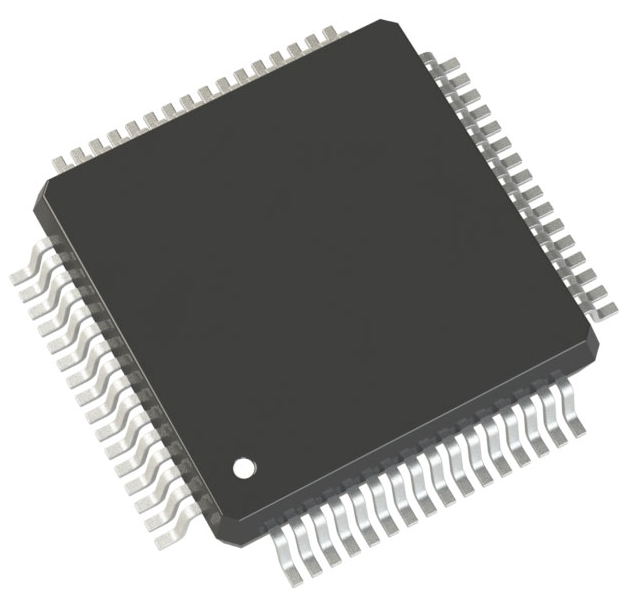

A Comprehensive Guide To S9S12P96J0VLH Microcontroller IC 16-Bit 32MHz 96KB (96K x 8) FLASH 64-LQFP (10x10)

HCS12 HCS12 Microcontroller IC 16-Bit 32MHz 96KB (96K x 8) FLASH 64-LQFP (10x10)

MC9S12P128

Covers also MC9S12P-Family

MC9S12P96

MC9S12P64

MC9S12P32

Introduction

The MC9S12P family is an optimized, automotive, 16-bit microcontroller product line focused on lowcost,

high-performance, and low pin-count. This family is intended to bridge between high-end 8-bit

microcontrollers and high-performance 16-bit microcontrollers, such as the MC9S12XS family. The

MC9S12P family is targeted at generic automotive applications requiring CAN or LIN/J2602

communication. Typical examples of these applications include body controllers, occupant detection, door

modules, seat controllers, RKE receivers, smart actuators, lighting modules, and smart junction boxes.

The MC9S12P family uses many of the same features found on the MC9S12XS family, including error

correction code (ECC) on flash memory, a separate data-flash module for diagnostic or data storage, a fast

analog-to-digital converter (ATD) and a frequency modulated phase locked loop (IPLL) that improves the

EMC performance.

The MC9S12P family deliver all the advantages and efficiencies of a 16-bit MCU while retaining the low

cost, power consumption, EMC, and code-size efficiency advantages currently enjoyed by users of

Freescale’s existing 8-bit and 16-bit MCU families. Like the MC9S12XS family, the MC9S12P family run

16-bit wide accesses without wait states for all peripherals and memories. The MC9S12P family is

available in 80-pin QFP, 64-pin LQFP, and 48-pin QFN package options and aims to maximize pin

compatibility with the MC9S12XS family. In addition to the I/O ports available in each module, further

I/O ports are available with interrupt capability allowing wake-up from stop or wait modes.

Chip-Level Features

On-chip modules available within the family include the following features:

• S12 CPU core

• Up to 128 Kbyte on-chip flash with ECC

• 4 Kbyte data flash with ECC

• Up to 6 Kbyte on-chip SRAM

• Phase locked loop (IPLL) frequency multiplier with internal filter

• 4–16 MHz amplitude controlled Pierce oscillator

• 1 MHz internal RC oscillator

• Timer module (TIM) supporting input/output channels that provide a range of 16-bit input capture,

output compare, counter, and pulse accumulator functions

• Pulse width modulation (PWM) module with 6 x 8-bit channels

• 10-channel, 12-bit resolution successive approximation analog-to-digital converter (ATD)

• One serial peripheral interface (SPI) module

• One serial communication interface (SCI) module supporting LIN communications

• One multi-scalable controller area network (MSCAN) module (supporting CAN protocol 2.0A/B)

• On-chip voltage regulator (VREG) for regulation of input supply and all internal voltages

• Autonomous periodic interrupt (API)
