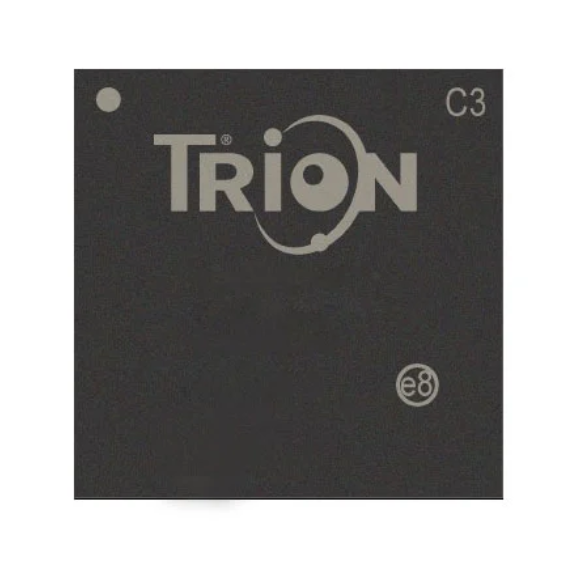

A Comprehensive Guide to T13F169C4 IC FPGA 73 I/O 169FBGA

Trion® Field Programmable Gate Array (FPGA) IC 73 744489 12828 169-VFBGA

Introduction

The T13 FPGA features the high-density, low-power Efinix® Quantum™ architecture

wrapped with an I/O interface for easy integration. With a high I/O to logic ratio and

differential I/O support, T13 FPGAs supports a variety of applications that need wide

I/O connectivity. The T13 also includes a MIPI D-PHY with a built-in, royalty-free CSI-2

controller, which is the most popular camera interface used in the mobile industry. The

carefully tailored combination of core resources and I/O provides enhanced capability for

applications such as embedded vision, voice and gesture recognition, intelligent sensor hubs,

power management, and LED drivers.

Features

• High-density, low-power Quantum™ architecture

• Built on SMIC 40 nm process

• Core leakage current as low as 6.8 mA(1)

• FPGA interface blocks

— GPIO

— PLL

— LVDS 800 Mbps per lane with up to 13 TX pairs and 13 RX pairs

— MIPI DPHY with CSI-2 controller hard IP, 1.5 Gbps per lane

• Programmable high-performance I/O

— Supports 1.8, 2.5, and 3.3 V single-ended I/O standards and interfaces

• Flexible on-chip clocking

— 16 low-skew global clock signals can be driven from off-chip external clock signals or PLL synthesized clock signals

— PLL support

• Flexible device configuration

— Standard SPI interface (active, passive, and daisy chain)

— JTAG interface

— Optional Mask Programmable Memory (MPM) capability

• Fully supported by the Efinity® software, an RTL-to-bitstream compiler
