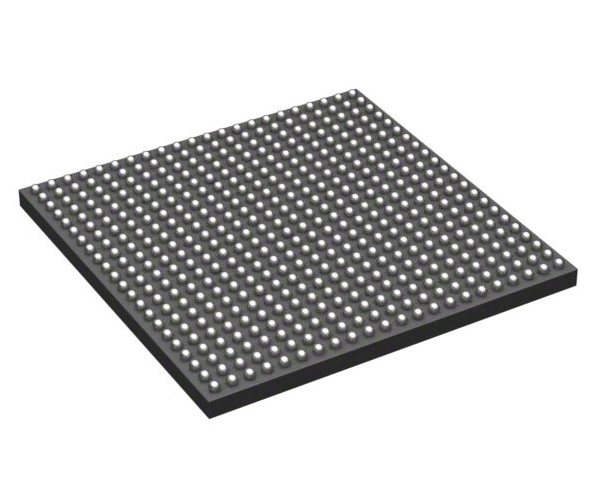

A Comprehensive Guide to T55F484I4 FPGA Trion Family 54195Cells 484-Pin FBGA

Trion® Field Programmable Gate Array (FPGA) IC 256 2831360 54195 484-LFBGA

Introduction

The T55 FPGA features the high-density, low-power Efinix® Quantum™ architecture

wrapped with an I/O interface for easy integration. With a high I/O to logic ratio and

differential I/O support, T55 FPGAs supports a variety of applications that need wide

I/O connectivity. The T55 also includes a MIPI D-PHY with a built-in, royalty-free

CSI-2 controller, which is the most popular camera interface used in the mobile industry.

Additionally, T55 FPGAs support a DDR3, LPDDR3, LPDDR2 PHY with memory

controller hard IP that provides faster access to data stored in memory. The carefully tailored

combination of core resources and I/O provides enhanced capability for applications such as

embedded vision, voice and gesture recognition, intelligent sensor hubs, power management,

and LED drivers.

Features

• High-density, low-power Quantum™ architecture

• Built on SMIC 40 nm process

• FPGA interface blocks

— GPIO

— PLL

— LVDS 800 Mbps per lane with up to 52 TX pairs and 52 RX pairs

— MIPI DPHY with CSI-2 controller hard IP, 1.5 Gbps per lane

— DDR3, DDR3L, LPDDR3, LPDDR2 x32 PHY (supporting x16 or x32 DQ widths) with memory controller hard IP, 25.6 Gbps aggregate bandwidth

• Programmable high-performance I/O

— Supports 1.8, 2.5, and 3.3 V single-ended I/O standards and interfaces

• Flexible on-chip clocking

— 16 low-skew global clock signals can be driven from off-chip external clock signals or PLL synthesized clock signals

— PLL support

• Flexible device configuration

— Standard SPI interface (active, passive, and daisy chain)

— JTAG interface

• Fully supported by the Efinity® software, an RTL-to-bitstream compiler
