A Comprehensive Guide to T8F81C2 Low Power, Small Footprint Titanium FPGAs

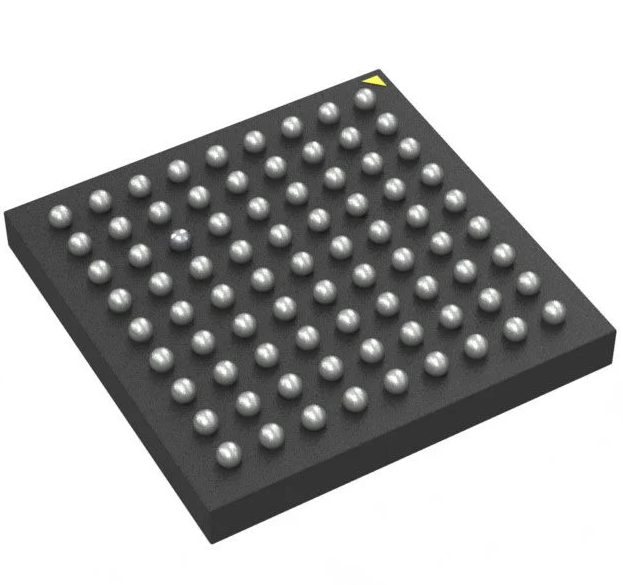

Trion® Field Programmable Gate Array (FPGA) IC 55 125952 7384 81-VFBGA

Introduction

The T8 FPGA features the high-density, low-power Efinix® Quantum™ architecture wrapped

with an I/O interface in a small footprint package for easy integration. T8 FPGAs support

mobile, consumer, and IoT edge markets that need low power, low cost, and a small form

factor. With ultra-low power T8 FPGAs, designers can build products that are always on,

providing enhanced capabilities for applications such as embedded vision, voice and gesture

recognition, intelligent sensor hubs, and power management.

Features

• High-density, low-power Quantum™ architecture

• Built on SMIC 40 nm process

• Less than 150 μA typical core leakage current at 1.1 V(1)

• Ultra-small footprint package options

• FPGA interface blocks

— GPIO

— PLL

— LVDS 600 Mbps per lane with up to 6 TX pairs and 6 RX pairs(2)

— Oscillator

• Programmable high-performance I/O

— Supports 1.8, 2.5, and 3.3 V single-ended I/O standards and interfaces(3)

• Flexible on-chip clocking

— 12 low-skew global clock signals can be driven from off-chip external clock signals or PLL synthesized clock signals

— PLL support

• Flexible device configuration

— Standard SPI interface (active, passive, and daisy chain)

— JTAG interface

— Optional Mask Programmable Memory (MPM) capability

• Fully supported by the Efinity® software, an RTL-to-bitstream compiler
