A Comprehensive Guide To TIBPAL16R4-15CJ* Programmable Logic Device (PLD) IC Macrocells

* Programmable Logic Device (PLD) IC Macrocells

General Description

These programmable array logic devices feature high speed and functional equivalency when compared with currently available

devices. These IMPACT™ circuits combine the latest Advanced Low-Power Schottky technology with proven titanium-tungsten

fuses to provide reliable, high-performance substitutes for conventional TTL logic. Their easy programmability allows for quick

design of custom functions and typically results in a more compact circuit board. In addition, chip carriers are available for further

reduction in board space.

The TIBPAL16' C series is characterized from 0°C to 75°C.The TIBPAL16' M series is characterized for operation over the full military

temperature range of -55°C to 125°C.

Features

• High-Performance Operation:

      Propagation Delay

      C Suffix...25 ns Max

      M Suffix...30 ns Max

• Functionally Equivalent, but Faster Than PAL16L8A,PAL16R4A,PAL16R6A,and PAL16R8A

• Power-Up Clear on Registered Devices (All Register Outputs Are Set High,but Voltage Levels at the Output Pins Go Low)

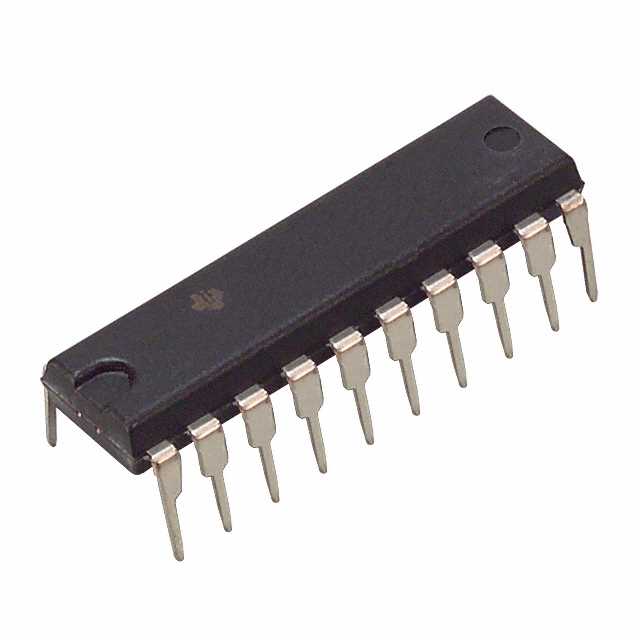

• Package Options Include Both Plastic and Ceramic Chip Carriers in Addition to Plastic and Ceramic DIPs

• Dependable Texas Instruments Quality and Reliability
