A Comprehensive Guide To TIBPAL20R6-10CFN IMPACT-X™ PAL® Programmable Logic Device (PLD) IC Macrocells 28-PLCC (11.51x11.51)

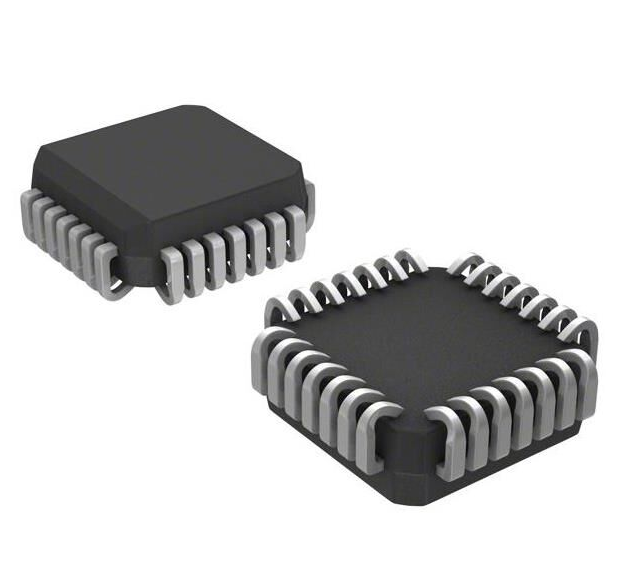

IMPACT-X™ PAL® Programmable Logic Device (PLD) IC Macrocells 28-PLCC (11.51x11.51)

General Description

These programmable array logic devices feature high speed and functionalequivalency when compared with currently available

devices.These IMPACT-XT™ circuits combine the latest Advanced Low-Power Schottky technology with proven titanium-tungsten

fuses to provide reliable, high-performance substitutes for conventionalTTL logic. Their easy programmability allows for quick

design of custom functions and typically results in a more compact circuit board. In addition, chip carriers are available for futher

reduction in board space.

All ofthe register outputs are set to a low level during power up. Extra circuitry has been provided to allow loading ofeach register

asynchronously to either a high or low state. This feature simplifies testing because the registers can be set to an initial state prior

to executing the test sequence.

The TIBPAL20’C series is characterized from 0°C to 75°C.

Features

• High-Performance Operation:

   fmax (no feedback)

      TIBPAL20R'...71.4 MHz

   fmax (internal feedback)

      TIBPAL20R'...58.8 MHz

   fmax (external feedback)

      TIBPAL20R'...55.5 MHz

   Propagation Delay

      TIBPAL20'...10 ns Max

• Functionally Equivalent, but Faster Than Existing 24-Pin PLD Circuits

• Preload Capability on Output Registers Simplifies Testing

• Power-Up Clear on Registered Devices (All Register Outputs are Set Low, but Voltage Levels at the Output Pins Go High)

• Package Options Include Plastic Chip Carriers in Addition to Plastic and Ceramic DIPs

• Security Fuse Prevents Duplication

• Dependable Texas Instruments Quality and Reliability
