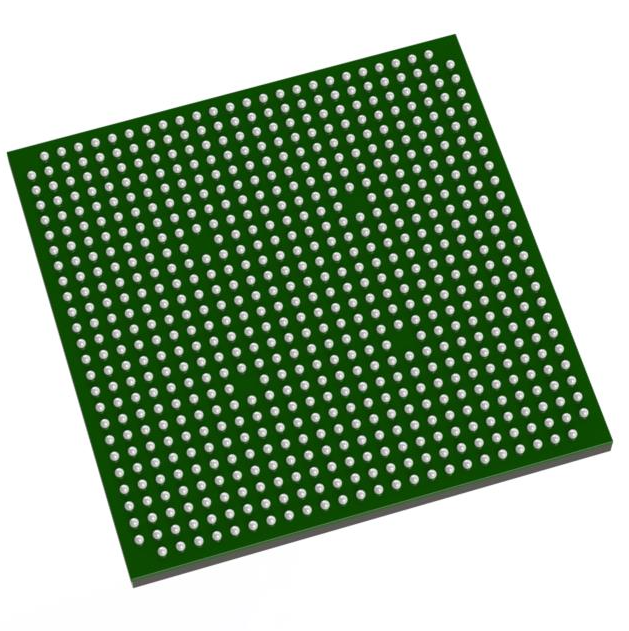

A Comprehensive Guide To XC4VLX40-11FFG668C Virtex®-4 LX Field Programmable Gate Array (FPGA) IC 448 1769472 41472 668-BBGA, FCBGA

Virtex®-4 LX Field Programmable Gate Array (FPGA) IC 448 1769472 41472 668-BBGA, FCBGA

General Description

Combining Advanced Silicon Modular Block (ASMBL™) architecture with a wide variety of flexible features, the Virtex®-4

family from Xilinx greatly enhances programmable logic design capabilities, making it a powerful alternative to ASIC

technology. Virtex-4 FPGAs comprise three platform families-LX, FX, and SX-offering multiple feature choices and

combinations to address all complex applications. The wide array of Virtex-4 FPGA hard-IP core blocks includes the

PowerPC® processors (with a new APU interface)，tri-mode Ethernet MACs, 622 Mb/s to 6.5 Gb/s serial transceivers,

dedicated DSP slices, high-speed clock management circuitry, and source-synchronous interface blocks. The basic Virtex-4

FPGA building blocks are enhancements of those found in the popular Virtex, Virtex-E，Virtex-II，Virtex-ll Pro, and

Virtex-II Pro X product families, so previous-generation designs are upward compatible. Virtex-4 devices are produced on

a state-of-the-art 90 nm copper process using 300 mm (12-inch) wafer technology.

Features

• Three Families - LX/SX/FX

      Virtex-4 LX:High-performance logic applications solution

      Virtex-4 SX:High-performance solution for digital signal processing (DSP) applications

      Virtex-4 FX:High-performance, full-featured solution for embedded platform applications

• Xesium™ Clock Technology

      Digital clock manager (DCM) blocks

      Additional phase-matched clock dividers (PMCD)

      Differential global clocks

• XtremeDSPT™ Slice

      18 x 18, two's complement, signed Multiplier

      Optional pipeline stages

      Built-in Accumulator (48-bit)and Adder/Subtracter

• Smart RAM Memory Hierarchy

      Distributed RAM

      Dual-port 18-Kbit RAM blocks

            Optional pipeline stages

            Optional programmable FIFO logic automatically remaps RAM signals as FIFO signals

• High-speed memory interface supports DDR and DDR-2 SDRAM, QDR-II, and RLDRAM-II.

• SelectIOT™ Technology

      1.5V to 3.3V I/O operation

      Built-in ChipSync™ source-synchronous technology

      Digitally controlled impedance (DCI) active termination

      Fine grained I/Obanking (configuration in one bank)

• Flexible Logic Resources

• Secure Chip AES Bitstream Encryption 90 nm Copper CMOS Process 1.2V Core Voltage

• Flip-Chip Packaging including Pb-Free Package Choices

• RocketlOT™ 622 Mb/s to 6.5 Gb/s Multi-Gigabit Transceiver (MGT) [FX only]

• IBM PowerPC RISC Processor Core [FXonly]

      PowerPC 405(PPC405) Core

      Auxiliary Processor Unit Interface (User Coprocessor)

• Multiple Tri-Mode Ethernet MACs [FX only]
